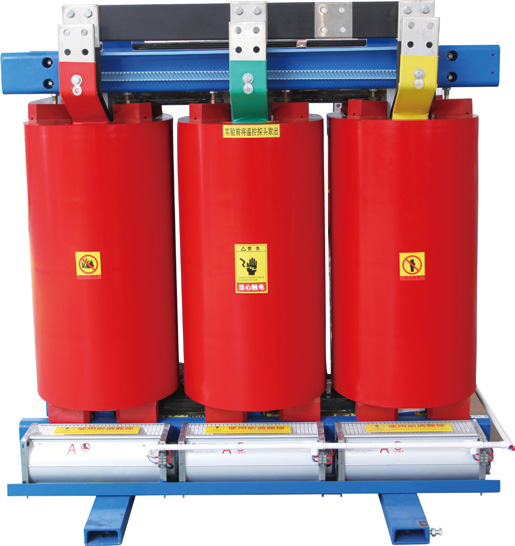

SC (Z) B 20kV, 35kV Dry Type Distribution Transformers
Voltage level：20kV、35kV
Frequency：50Hz
Tapping range：±2×2.5％、±5％
Connection group：Dyn11、Yyn0
Capacity range：50~2500kVA
Insulation level:：20kV Ll125 AC50、35kV Ll170 AC70
Insulation level: F or H
Product Details
Transformers produced by our company adopts the third generation of german htt advanced technology, based on The F or H-class insulation material, adopting the vacuum pressure mirror casting process, and the insulation grade reaches F or H-class insulation. it is widely used in all kinds of residential, commercial buildings, public facilities, industrial and mining enterprises, power generation enterprises and urban and rural power grids in the power transmission and distribution system of 35kV and below, 50Hz or 60Hz. it is the most ideal green environmental protection power supply and distribution equipment.
GB1094.11 Power transformers – Part 11: dry type transformers
GB/T10228 Technical parameters and requirements of dry type power transformer
GB4208 Enclosure protection class (IP code)
JB/T10088 Sound level of 6kV ~ 500kV power transformer
JB/T3837 The method of making transformer product model
IEC60076-11 Power transformers – Part 11: dry type transformers
GB20052 Limited value and grade of energy efficiency of three-phase distribution transformer
Frequently Asked Questions
A: Every transformer will go through full type test and routine test. We provide test report, factory certificate.
A: We adopt high-quality silicon steel sheet to reduce no-load loss. Loss data can be provided according to your required capacity.
A: The tank is made of carbon steel plate, with anti-rust epoxy painting for corrosion resistance. Stainless steel tank is optional.
A: We supply both oil-immersed transformers and dry-type transformers. Oil type is more cost-effective for outdoor use; dry type is for indoor fire-sensitive environment.
Common voltage combinations: 11kV/0.4kV, 15kV/0.4kV, 20kV/0.4kV. We support custom voltage.
A: Our distribution transformers range from 10kVA to 2500kVA. Custom capacity is available upon request.
