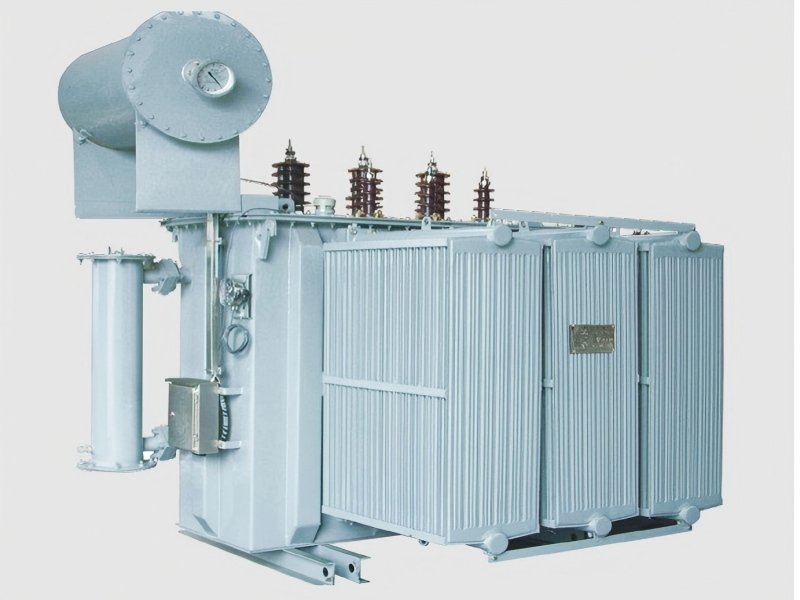

35kV Oil Immersed Power Transformer
Brand:XINGHEDU
Voltage grade: 35 kV
Tap range:
connection symbol: Yyn0、 Dyn11
Capacity range:
Insulation level:
Category：35kV Oil Immersed Power Transformer
Product Details
The 35kV (on load) power transformer produced by our company is a new product developed by ourselves for the transformation of urban and rural power grids on the basis of absorbing the advanced technology at home and abroad. Its performance is superior to the technical parameters and requirements of oil immersed power transformer (GB / 6451-2008), which fully conforms to the GB1094 power transformer standard and iec60076 recommended by International Electrotechnical Commission. This product has The characteristics of low loss, low noise and no lifting center are greatly improved in safety, reliability and economy. This series of power transformers are suitable for 35kV, 50Hz power transmission and transformation system. They are used as main transformers in urban power grid reconstruction, industrial and mining enterprises and 35kV substations. They can realize remote voltage regulation for transformers with load. The technical performance index of the product reaches the leading level in China.
Frequently Asked Questions
A: Every transformer will go through full type test and routine test. We provide test report, factory certificate.
A: We adopt high-quality silicon steel sheet to reduce no-load loss. Loss data can be provided according to your required capacity.
A: The tank is made of carbon steel plate, with anti-rust epoxy painting for corrosion resistance. Stainless steel tank is optional.
A: We supply both oil-immersed transformers and dry-type transformers. Oil type is more cost-effective for outdoor use; dry type is for indoor fire-sensitive environment.
Common voltage combinations: 11kV/0.4kV, 15kV/0.4kV, 20kV/0.4kV. We support custom voltage.
A: Our distribution transformers range from 10kVA to 2500kVA. Custom capacity is available upon request.
